New user needs help! Never used SVG before, paths returning to origin

  • forum 2 replies
  • last reply by frmdstryr April 24, 2021
  • Last
  • link
    identifypecans
    Members 2 posts
    April 9, 2021, 12:44 p.m. April 9, 2021, 12:44 p.m.
    link

    Hi InkCut forums!

    I'm excited to get started with InkCut and have the software functioning, but I think I need a primer on how to create a proper svg in InkScape to produce a proper cut pattern.

    I created a test page using the text tool and converted it to path using 'object to path', resulting in the attached svg file. When cut, it returns to the home position after every stroke (except for the 'H' and the second 'l' for whatever reason)

    LOL! I cannot upload a file of type .svg on this forum! That's rich! I'll try zipping it.

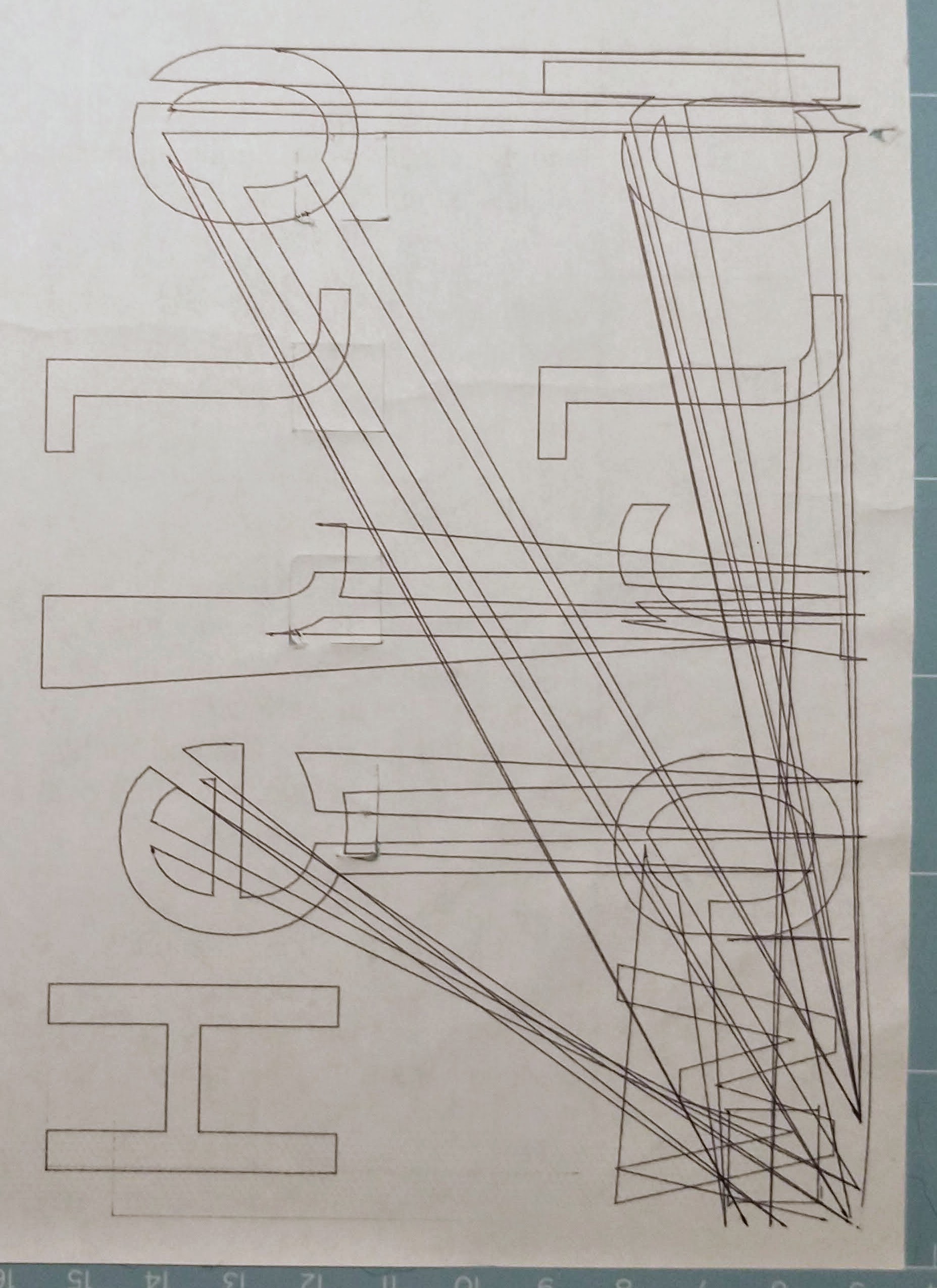

    And the beautiful results are attached as a jpg

    Thank you for this fantastic open source tool!


    JPG, 463.1 KB, uploaded by identifypecans on April 9, 2021.

    insert_drive_file
    drawing.zip

    ZIP, 2.5 KB, uploaded by identifypecans on April 9, 2021.

  • link
    identifypecans
    Members 2 posts
    April 10, 2021, 10:17 p.m. April 10, 2021, 10:17 p.m.
    link

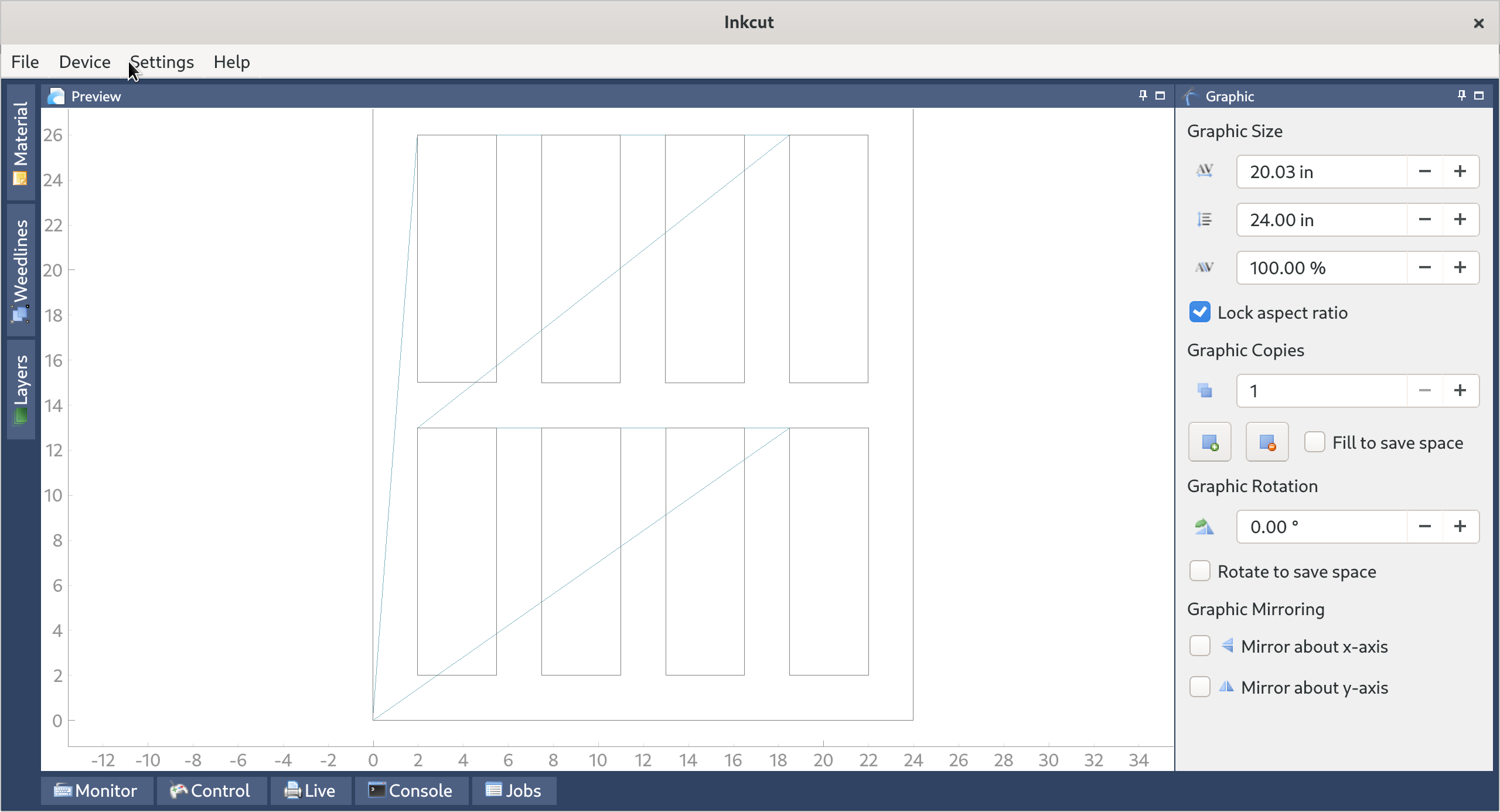

    I'm not sure it's the SVG that's the problem. Here's another one I created from shapes, then I used Object to Path and it looked good. But when I open it in InkCut it has these blue lines that don't seem right (attached)


    PNG, 164.2 KB, uploaded by identifypecans on April 10, 2021.

  • link
    frmdstryr
    Team 122 posts
    April 24, 2021, 2:43 a.m. April 24, 2021, 2:43 a.m.
    link

    The blue lines are where it will move without cutting.

    The weird cut pattern looks a lot like an issue on githib github.com/inkcut/inkcut/issues/197
